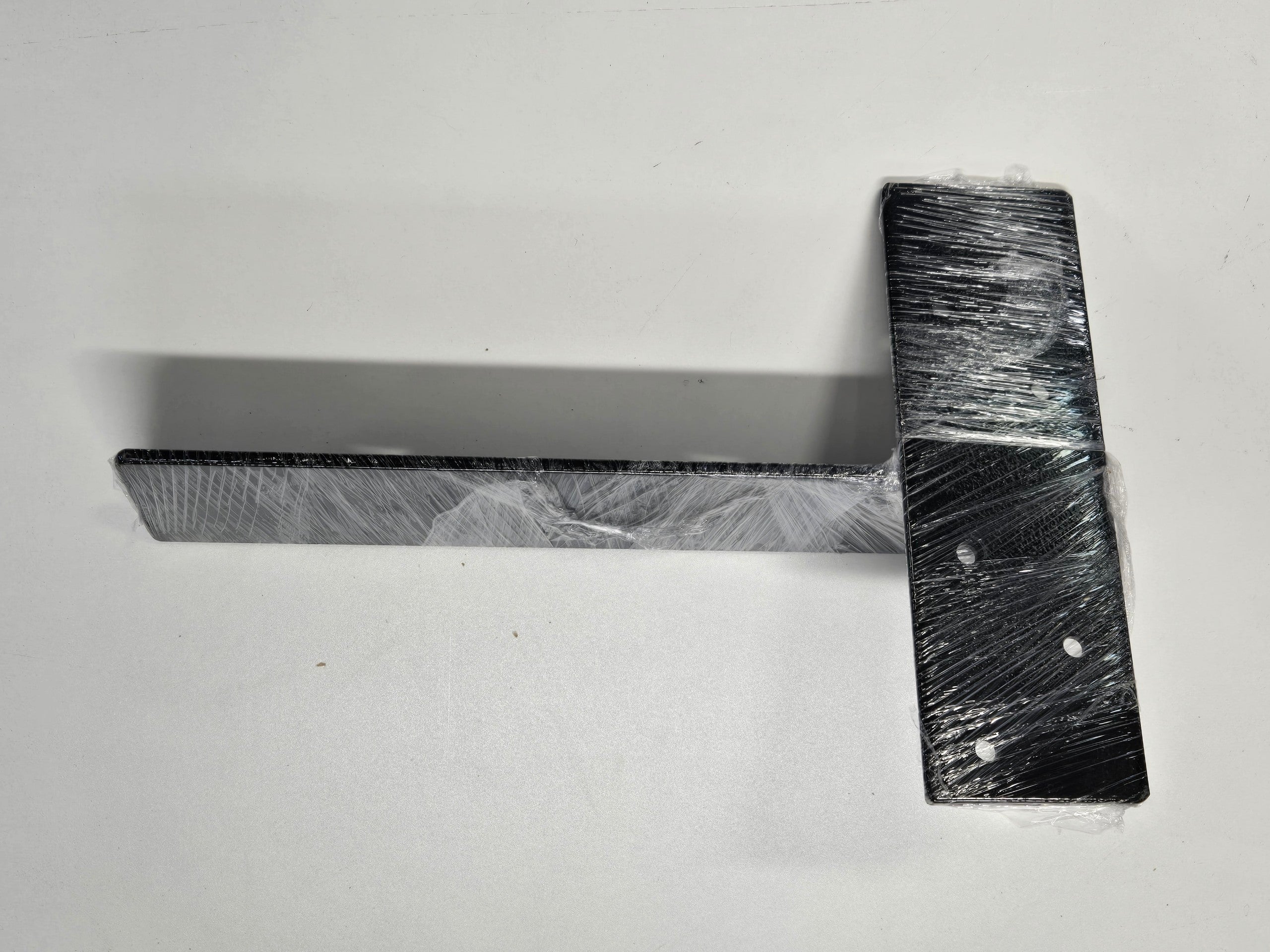

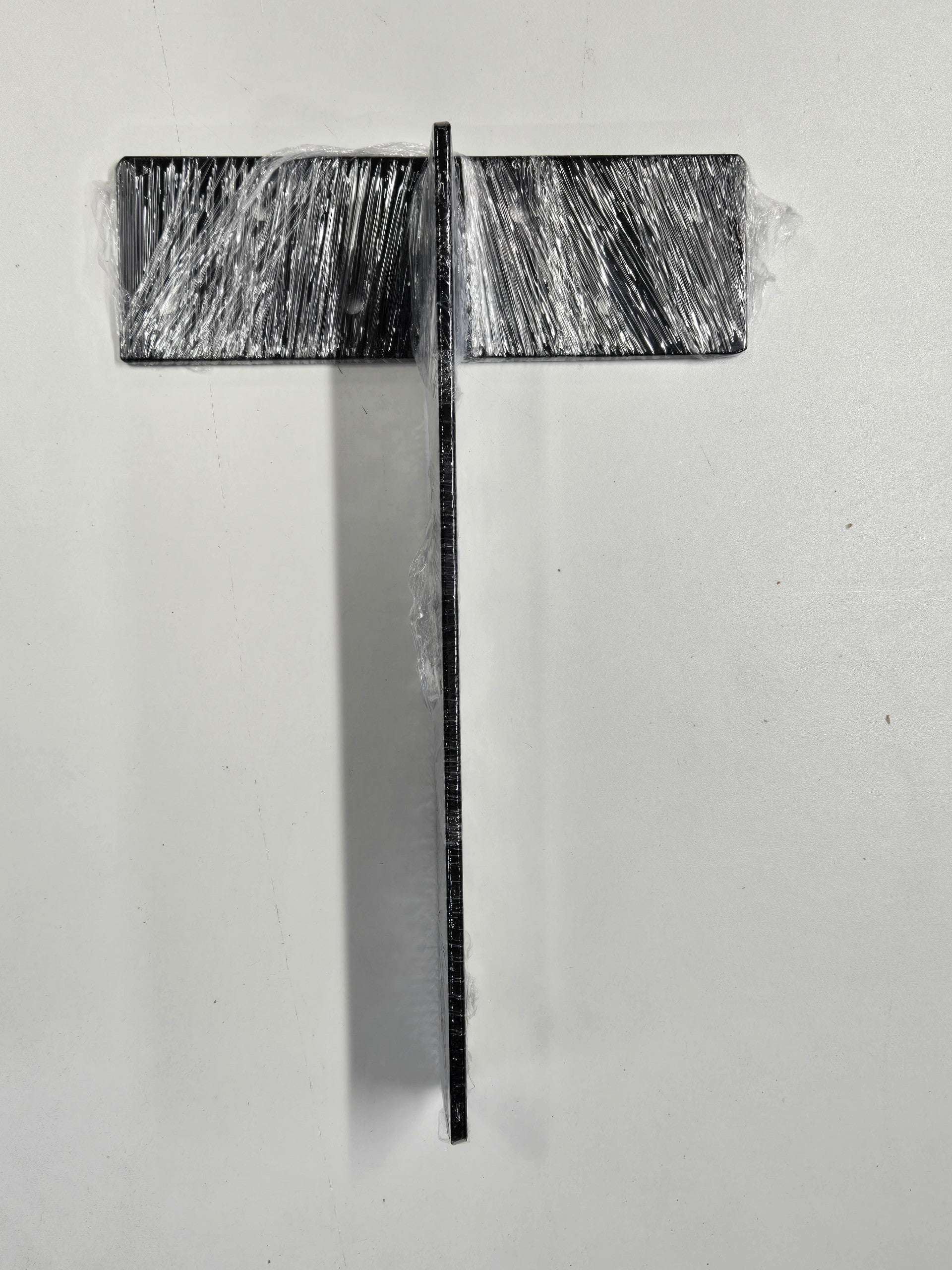

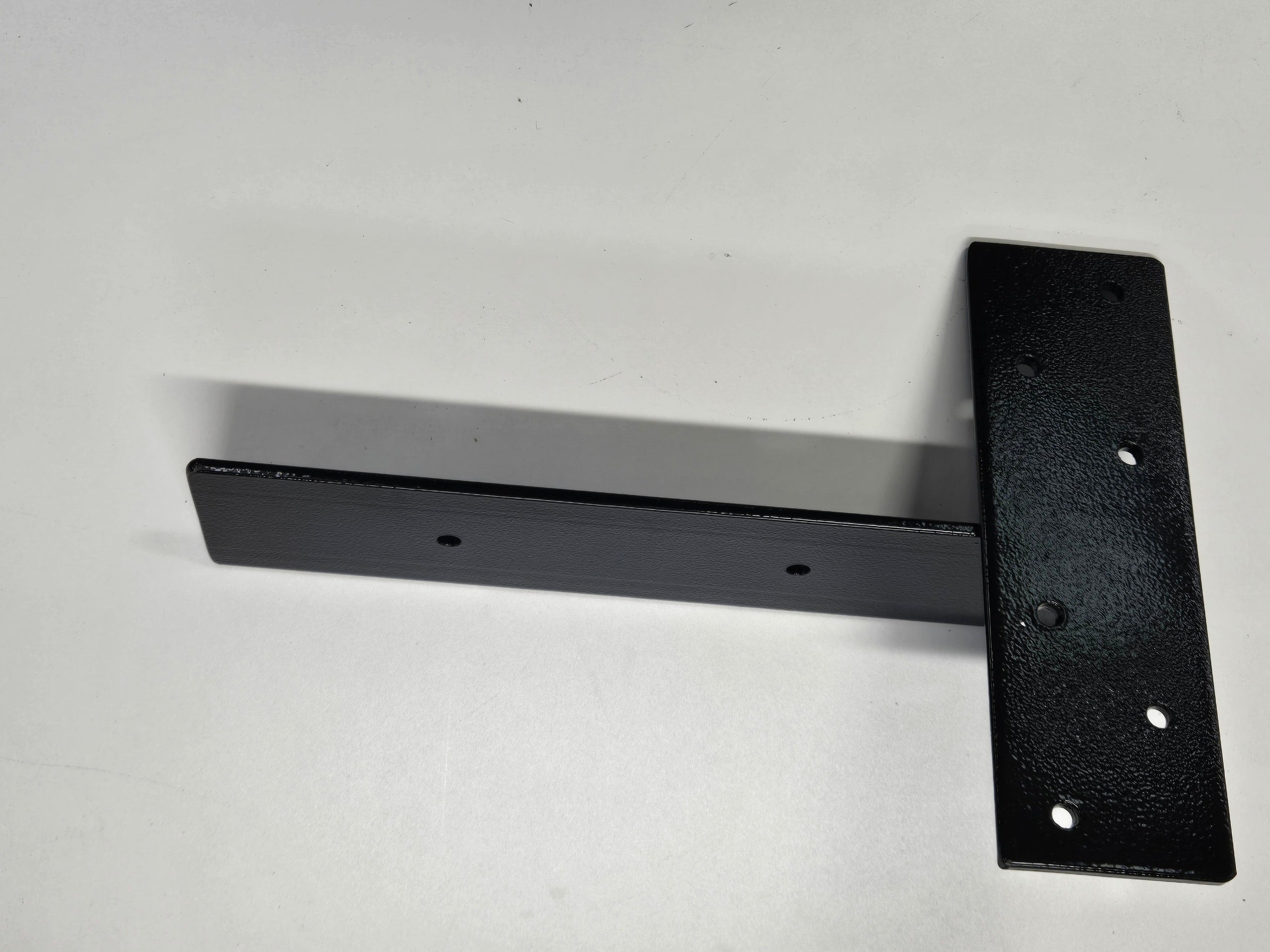

9" Heavy Duty Floating Shelf Bracket – Floating Stud Mount Shelf Bracket

Our Heavy Duty Floating Shelf Brackets are designed to support a shelf, countertop, bar top, bench, or cabinet. These hidden/floating shelf brackets are mounted directly to wall studs behind drywall. Six mounting holes give this bracket an extremely high weight capacity, making it well-suited for use with heavier projects. When the drywall is installed, our heavy duty hidden shelf brackets protrude out from the wall for a shelf or surface to rest on. The result is a "floating" surface on a barely visible and extremely strong support bracket!

Product Specifications:

• 3/16" thickness
• 9" length
• Both the protruding and mounting plate are 2 1/2″ wide
• 7.75" long mounting plate
• Unbeveled front edge to be mounting on either left or right side of wall stud.
• 6 total 1/4" mounting holes on mounting plate.
• Bracket has 2 shelf mounting holes (not countersunk) on the bottom of the bracket. Allows you to screw into wood shelves/countertops for a solid mount.
• Bracket is buffed to give smooth edges and eliminate any burrs.
• Powder coated black to prevent against corrosion and rust.

Weight Capacity:

• Each bracket supports 50 lbs. This is when the bracket begins to bend.
• Make sure high quality mounting hardware is used to secure bracket to wall stud.
• For stronger brackets to support over 50 lbs each, view our thicker heavy duty floating shelf brackets.

Installation Tips:

• Mounting Hardware Not Included.
• When mounting to wood wall studs; we recommend 1/4" lag screws 1.5″ long. Make sure you drill pilot holes to avoid cracking!
• Use #12 tapered screws when mounting wood to these brackets.
• Drill pilot holes to avoid cracking your mounting surface.
• If you're using this bracket to support stone, we recommend Liquid Nails to mount the bracket to the stone.
• If you're looking for more tips on installing these brackets, view our installation video below or visit this forum discussing the installation process.
• If you don't want to open up a wall and mount to the stud try these lighter duty floating shelf brackets

Fulfillment & Shipping Details:

• Packaged with film & foam between items to eliminate damage during shipping.
• Most orders will ship within 0-2 business days and ground shipping usually takes between 2-3 days in the lower 48 states.
• Bulk or custom orders may take 1-3 days to manufacture.
• We use USPS, Fedex, or UPS shipping depending on the speed & rate.
• A tracking number will be E-mailed to the address provided in the order.
• Contact us or visit our shipping details page for more information. &

Installing A Heavy Duty Floating Shelf Bracket:

Heavy Duty Strength & High Weight Capacity:
