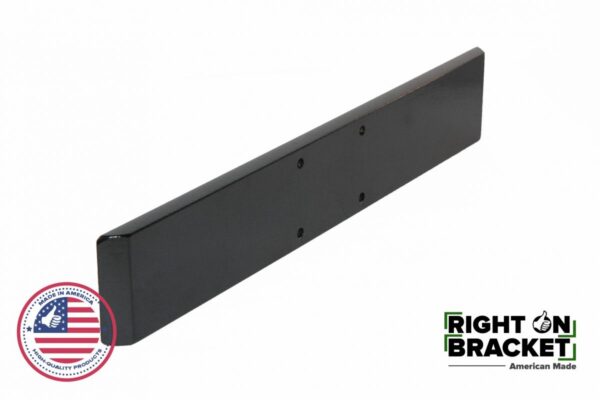

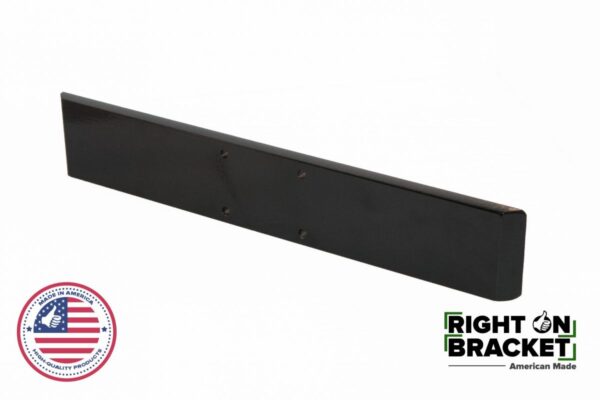

Center Mount Bracket – Half Wall Countertop Bracket

Introducing Right On Bracket’s center mount countertop bracket—your ultimate tool when it comes to countertop installation. Perfect for kitchen islands, breakfast bars, or floating desks, these brackets guarantee secure and stable support with unparalleled convenience. Our brackets, crafted with meticulous attention to detail, can withstand substantial weight, ensuring your countertop remains safe and steady.

At Right On Bracket, we understand the importance of aesthetics. Hence, our center mount brackets are invisible when installed, preserving the sleek look of your countertop. Made in the USA with premium American steel, these brackets offer an exceptional blend of strength and longevity, making them a smart one-time investment for your home.

Transform your living space with our half wall support brackets. Easy to install and even easier to love, these brackets will redefine your entire space. Experience the Right On Bracket difference today!

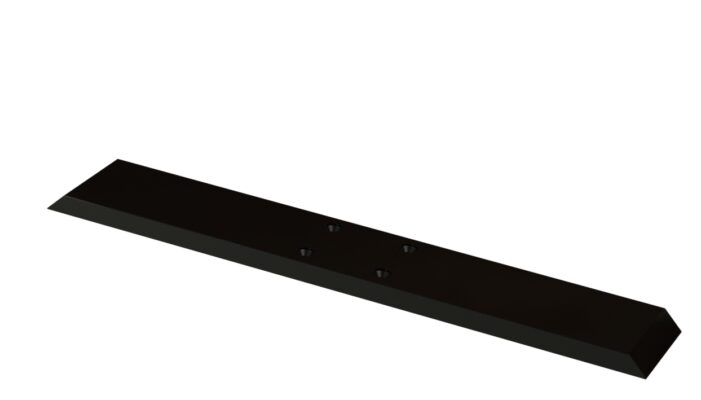

Our Center Mount Bracket Countertop Bracket provides the best support for a countertop on a knee wall spanning both sides. Four countersunk mounting holes are made in the center of the bracket so screws may be directly screwed into the top of the half wall.  Both edges have a 45 degree beveled edge so there’s no blunt edge under your countertop.  Gives the best support for an overhanging granite, marble, or heavy weight countertop.

Product Specifications:

  • Available in thicknesses: 3/8″ & 1/2″
  • Available in lengths: 12″, 15″, 20″, 24″, 28″, 32″, 36″, 40″
  • All Brackets are 2 1/2″ wide.

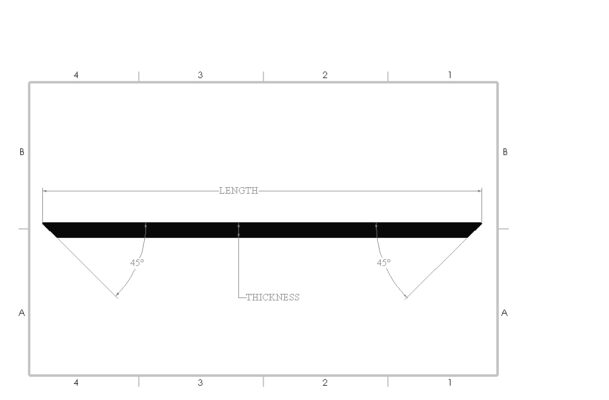

  • 45 degree beveled & smooth front edge.

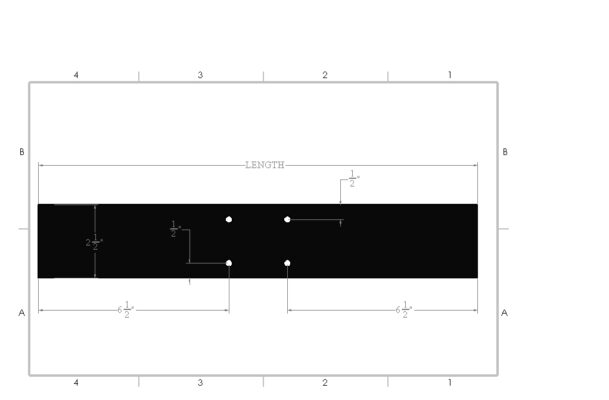

  • 4 countersunk mounting holes for a secure mount to a half wall.
  • Bracket is buffed to give smooth edges and eliminate any burrs.
  • Powder coated black to prevent against corrosion and rust.

Weight Capacity:

  • Make sure high quality mounting hardware is used to secure bracket.
  • Specific max load/weight capacities per bracket are detailed in the diagram.
  • Examples:
    • One 15″ long 3/8″ thick bracket has a weight capacity of 1100 lbs.
    • Two 40″ long 3/8″ thick brackets have a weight capacity of 800 lbs.

Installation Tips:

  • Mountain Hardware Not Included.
  •  Recommending #12 tapered wood screws 1.5″ – 2″ long.
  • Drill pilot holes to avoid cracking your mounting surface.
  • Route out a slot for the bracket to lay into. The bracket should be flush with the top of the half wall.
  • This bracket must be installed before your stone or wood countertop is installed. The countertop overhang will lay on top on the support bracket.
  • If you’re using this bracket to support stone, we recommend Liquid Nails to mount the bracket to the stone.
  • If you only need a support bracket on one side of a pony wall, use our Top Mount Countertop Support Brackets.

Bracket Size Recommendations:

  • 3/8″ thick brackets are our most popular. Will be plenty strong for most countertop overhangs. Used for both commercial and residential applications.
  • 1/2 thick brackets are designed for long stone overhangs and commercial applications. If anyone is going to sit/lead on countertop or a large amount of weight is anticipated, we recommend this thickness.
  • The bracket length should be 1″ – 3″ shorter than the overhang.

Fulfillment & Shipping Details:

  • Packaged with film & foam between items to eliminate damage during shipping.
  • Most orders will ship within 0-2 business days and ground shipping usually takes between 2-3 days in the lower 48 states.
  • Bulk or custom orders may take 1-3 days to manufacture.
  • We use USPSFedex, or UPS shipping depending on the speed & rate.
  • A tracking number will be E-mailed to the address provided in the order.
  • Contact us or visit our shipping details page for more information.

Center Mount weight capacities chart

Center Mount Countertop Overhang Support Bracket


Center Mount Countertop Bracket
